RoHS 8 Bit Microcontroller ST STM8S003K3T6C Semiconductors STM32F407ZET6

Embedded Processors Controllers Microcontrollers MCU 8-bit ST STM8S003K3T6C Semiconductors

1. Core

• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set

2. Memories

• Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
• RAM: 1 Kbyte
• Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles

3. Clock, reset and supply management

• 2.95 V to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources
• Clock security system with clock monitor
• Power management

4. Interrupt management

• Nested interrupt controller with 32 interrupts
• Up to 27 external interrupts on 6 vectors

5. Timers

• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization • 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wakeup timer
• Window and independent watchdog timers

6. Communications interfaces

• UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I 2C interface up to 400 Kbit/s

7. Analog to digital converter (ADC)

• 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog

8. I/Os

• Up to 28 I/Os on a 32-pin package including 21 high-sink outputs
• Highly robust I/O design, immune against current injection

• Embedded Processors Controllers Microcontrollers MCU 8-bit ST STM8S003K3T6C Semiconductors

• ABS anti-lock braking system
• GPS navigation system
• engine intelligent electronic controller
• LCD drive controller
• Smart appliances
• Wireless charging for consumer electronics

RoHS 8 Bit Microcontroller

STM8S003K3T6C

STM32F407ZET6

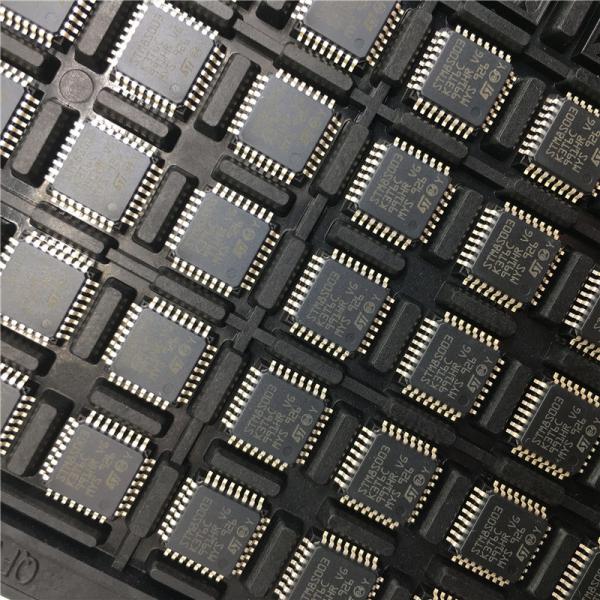

RoHS 8 Bit Microcontroller ST STM8S003K3T6C Semiconductors STM32F407ZET6 Images
